Premium current transformers for measurement and protection applications. IEC 61869 certified with accuracy classes from 0.2 to 5P20.

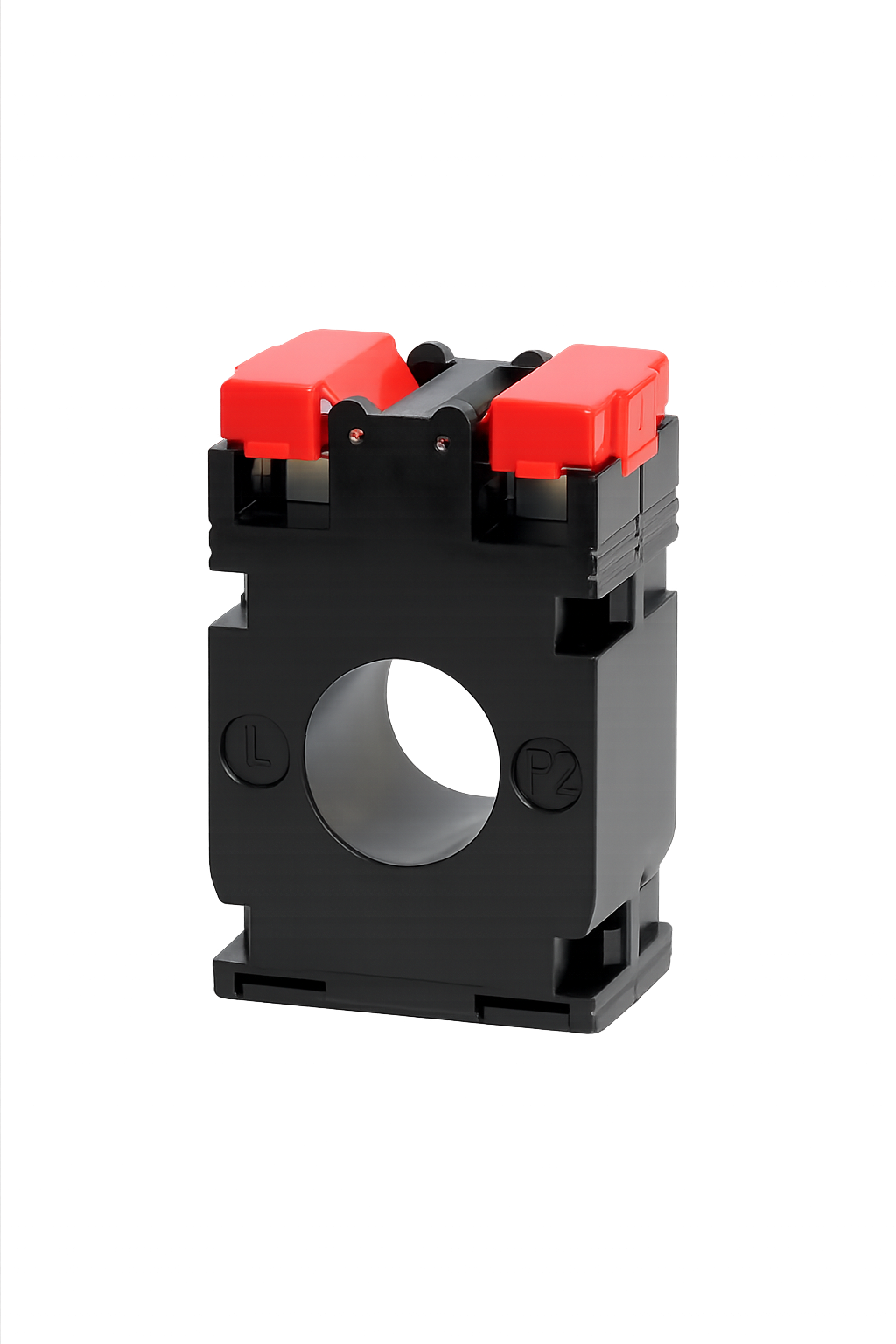

The CK20 Series Window Type Current Transformer is a compact CT for 40–300A applications, with 1A or 5A secondary output, accuracy classes 0.5, 1, and 3, up to 2.5 VA power, and a 20 mm window diameter.
The TK30N Series Window Type Current Transformer is a compact CT for 40–600A applications, with 1A or 5A secondary output, accuracy classes 0.5, 1, 3, and 5, up to 3.75 VA power, and a 30X10 mm window size.

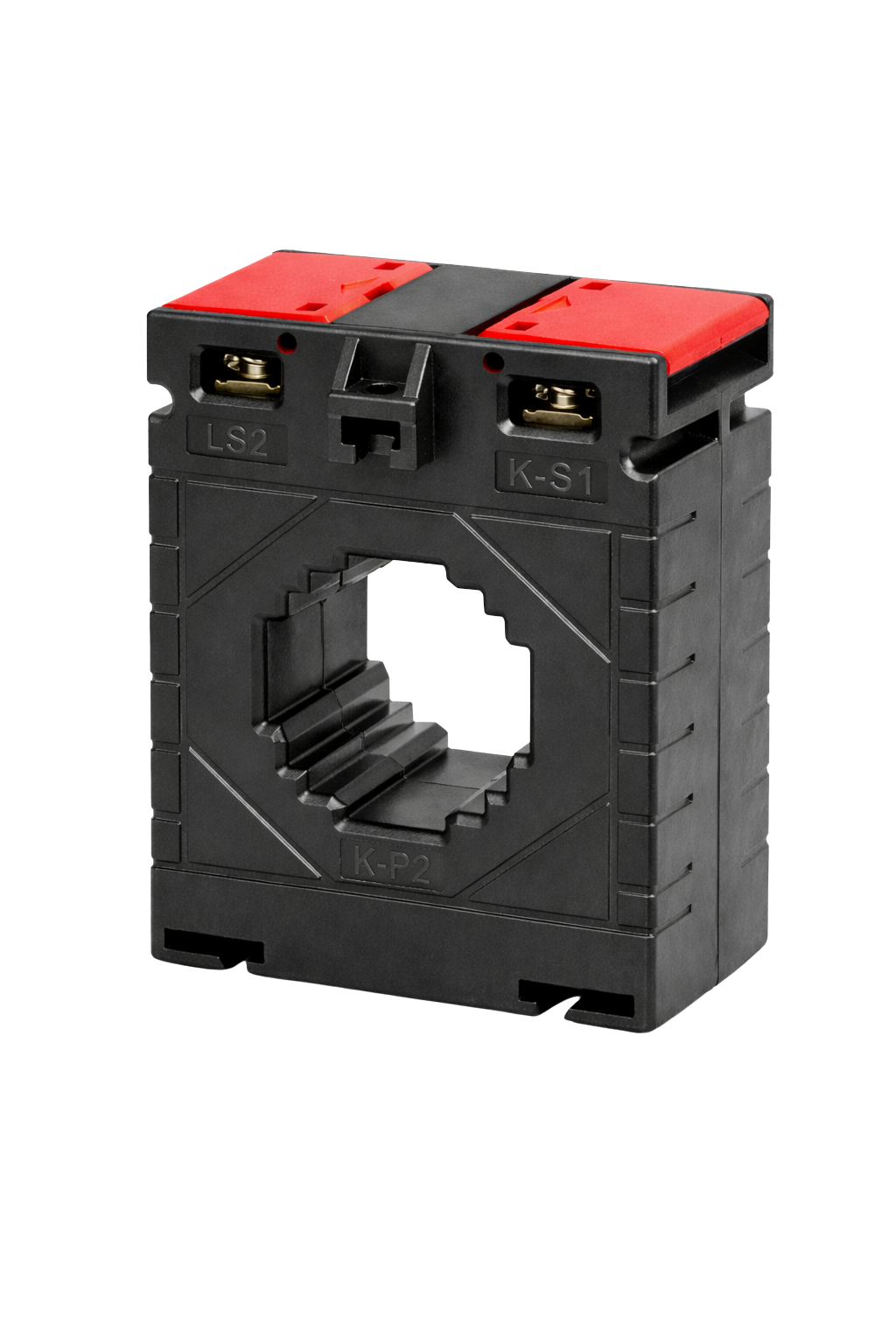

The TK30 Series Window Type Current Transformer is a compact CT for 40–600A applications, with 1A or 5A secondary output, accuracy classes 0.5S, 0.5, 1, and 3, up to 10 VA power, and a 30X10 mm window size.

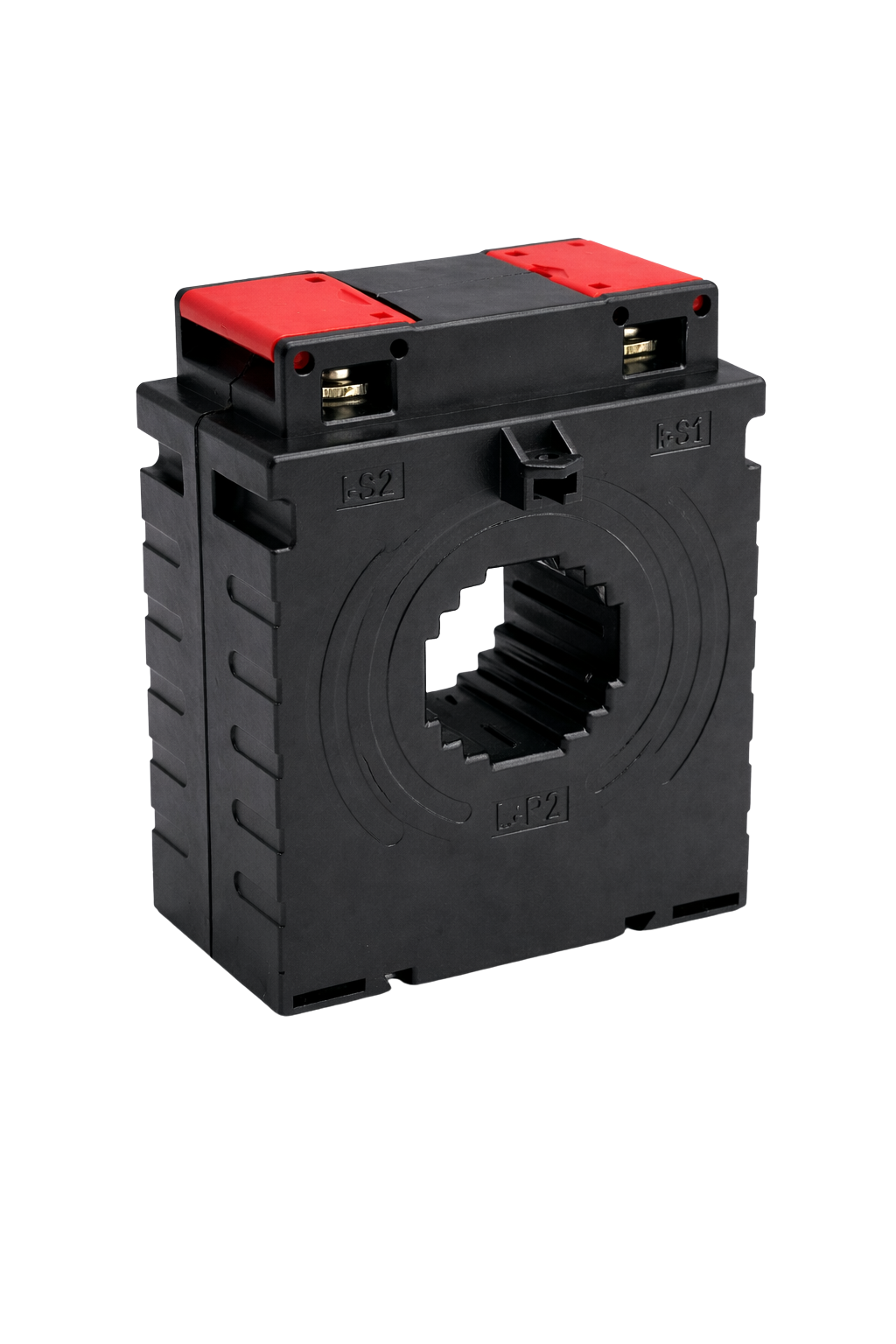

The TK30A Series Window Type Current Transformer is a compact CT for 25–600A applications, with 1A or 5A secondary output, accuracy classes 0.2S, 0.5S, 0.1, 0.2, 0.5, and 1, up to 30 VA power, and a 30X10 mm window size.

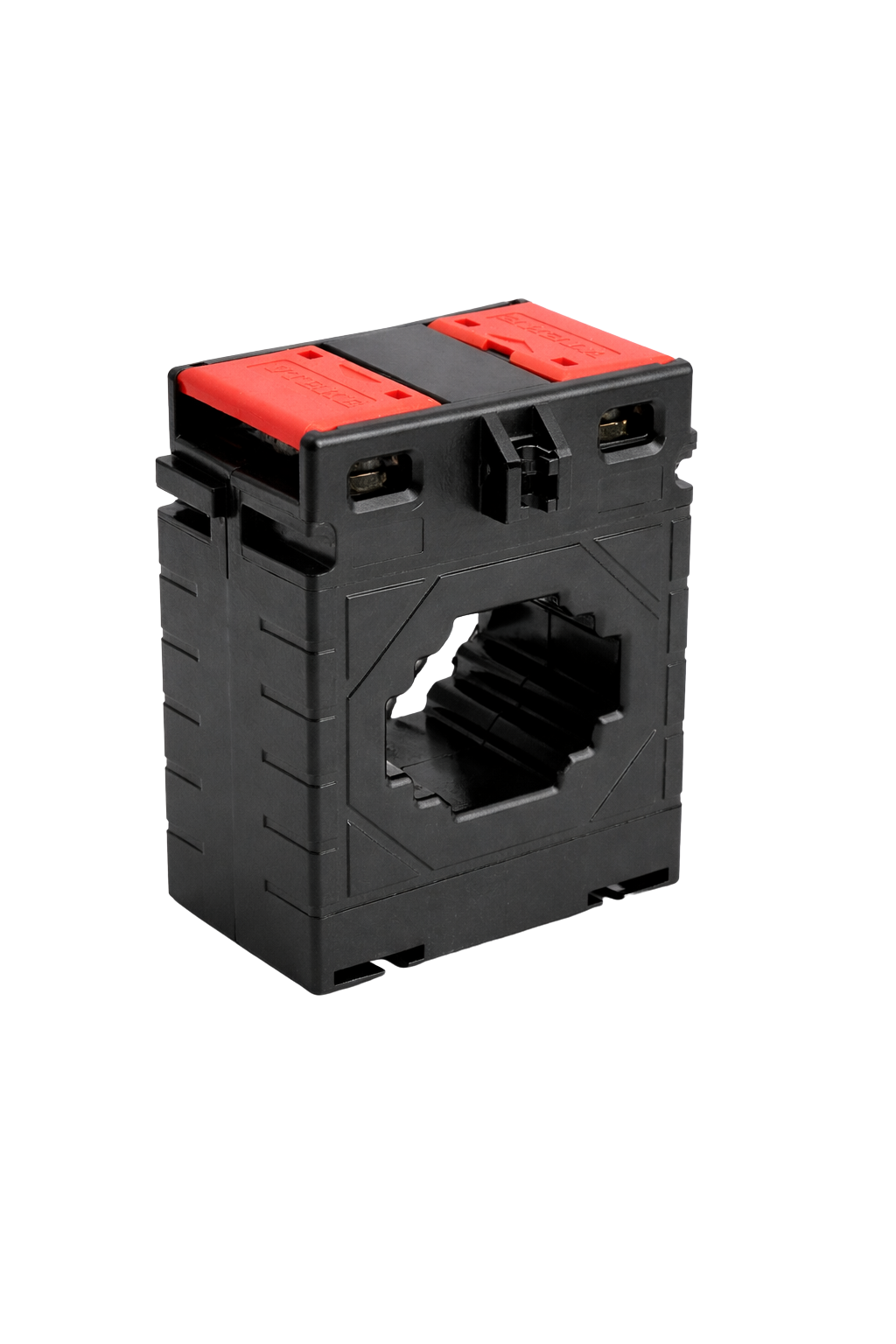

The TK40 Series Window Type Current Transformer is a compact CT for 200–800A applications, with 1A or 5A secondary output, accuracy classes 0.2S, 0.5S, 0.2, 0.5, and 1, up to 10 VA power, and a 40X10 mm window size.

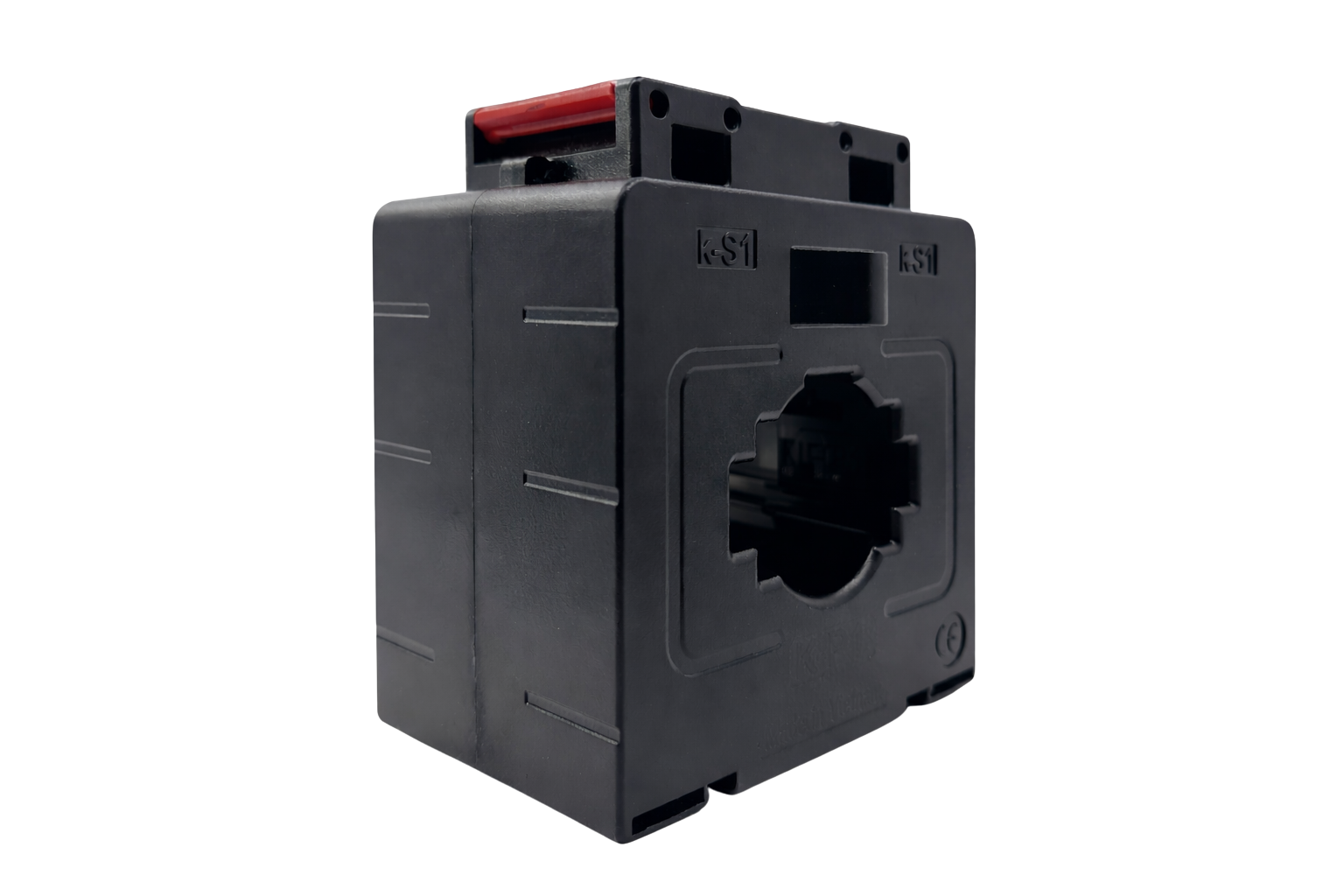

The TK40A Series Window Type Current Transformer is a compact CT for 100–800A applications, with 1A or 5A secondary output, accuracy classes 0.2S, 0.2, 0.5S, 0.5, 1, 3, and 5, up to 20 VA power, and a 40X10 mm window size.

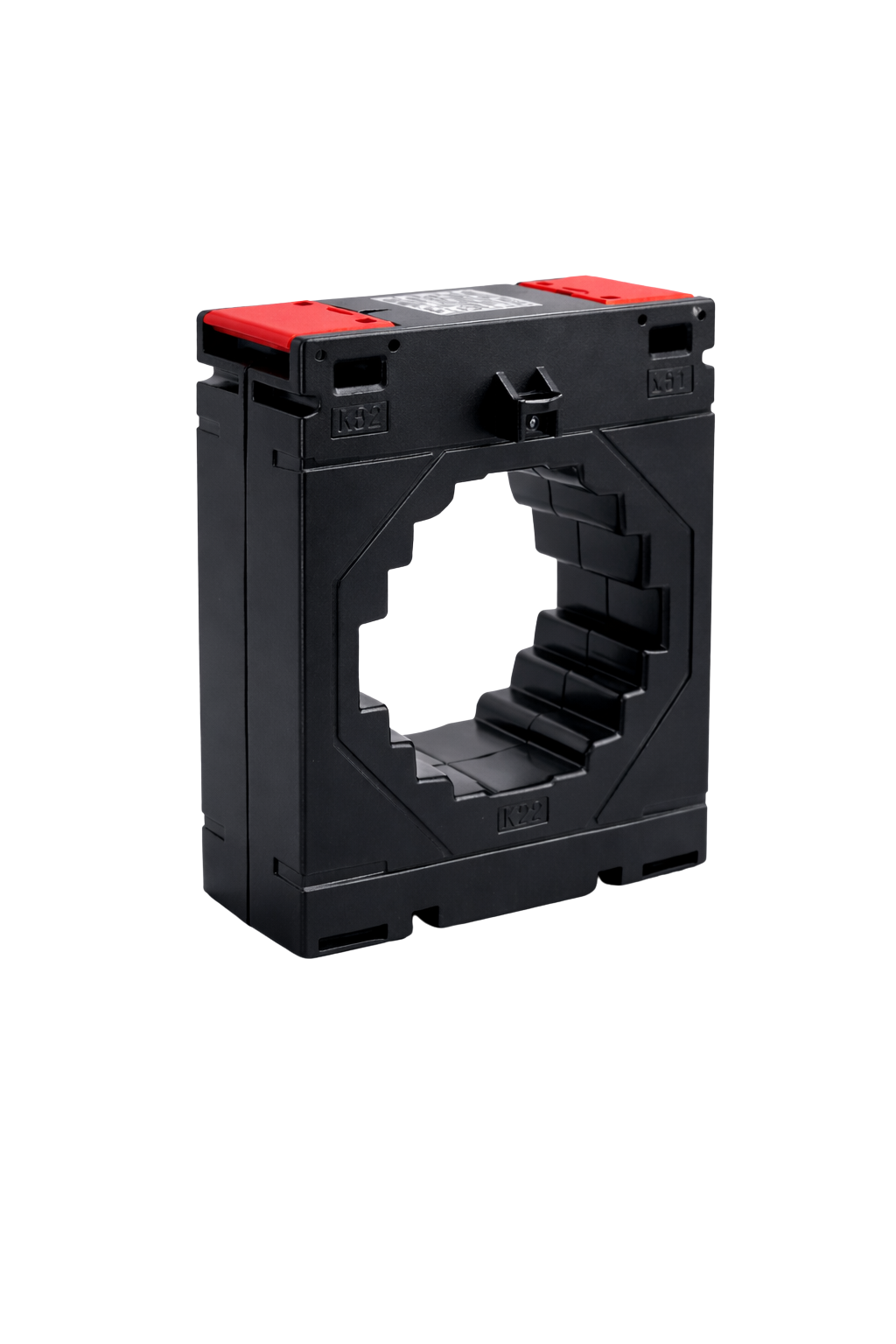

The TK60 Series Window Type CT is a compact transformer for 400–1250A applications, with 1A or 5A secondary output, accuracy classes 0.1, 0.2S, 0.2, 0.5S, 0.5 and 1, up to 15 VA power, and a 60X10 mm window size.

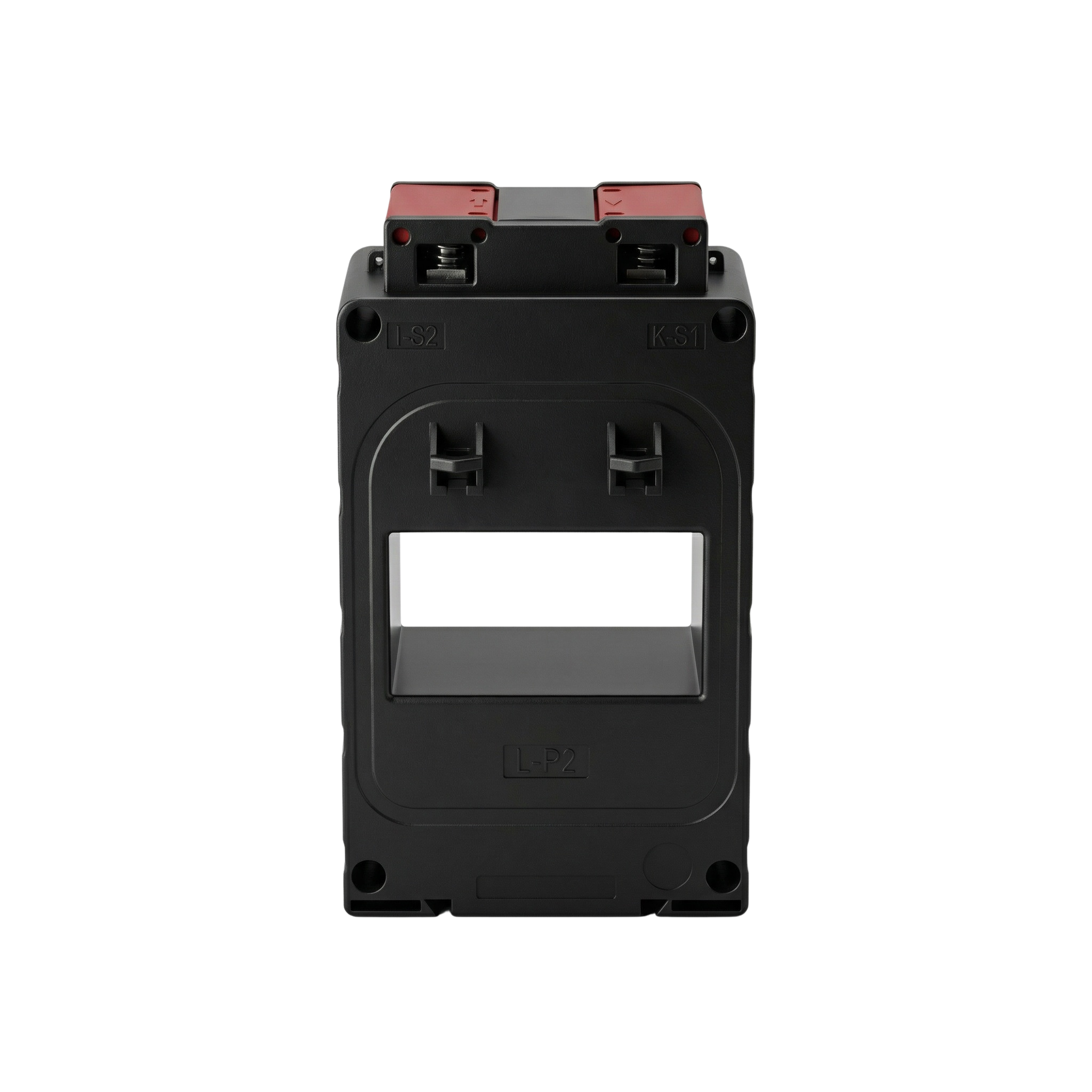

The TK60D Series Window Type CT is a compact transformer for 500–2000A applications, with 1A or 5A secondary output, accuracy classes 0.5 and 1, up to 30 VA power, and a 30X60 mm window size.

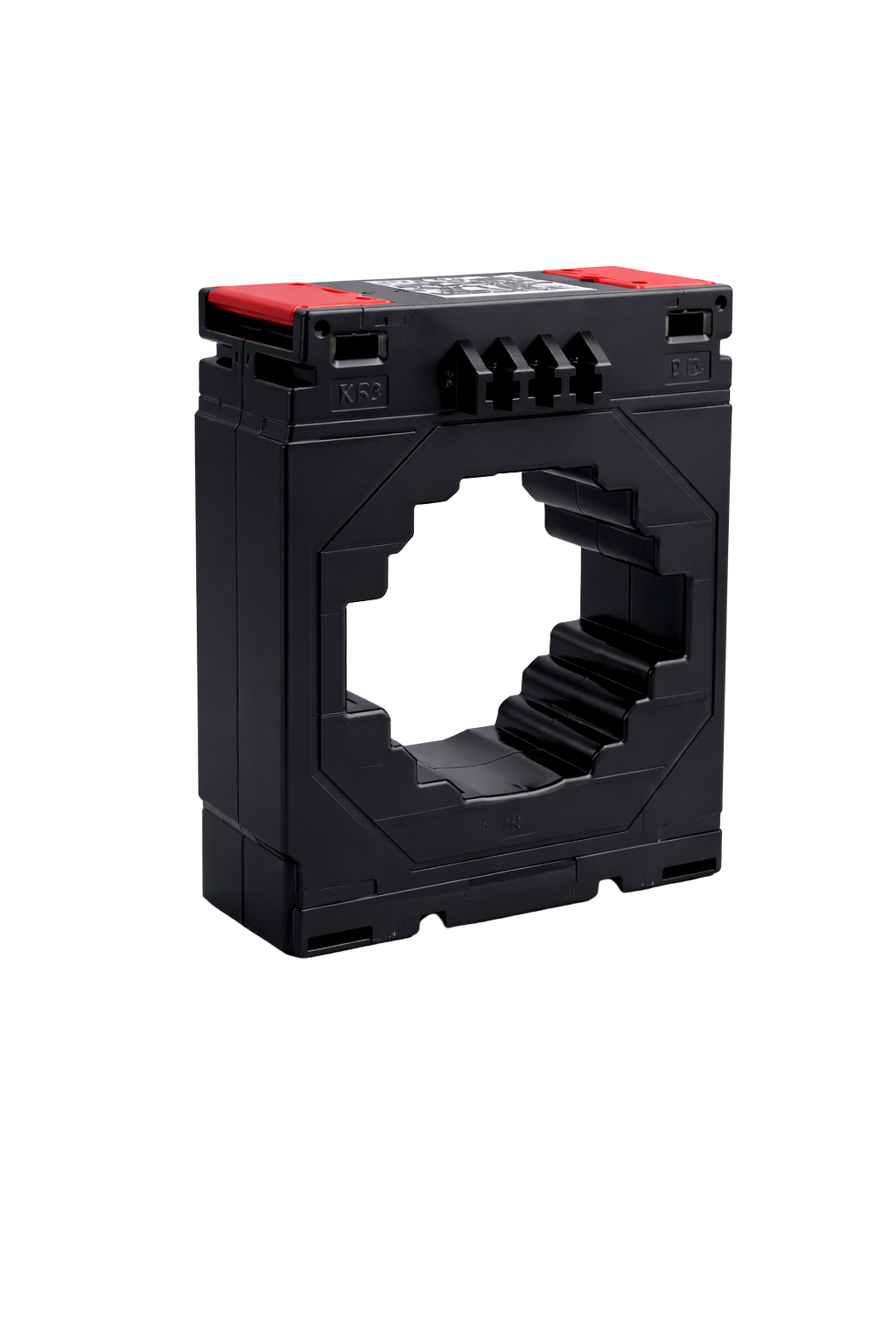

The TK80 Series Window Type CT is a compact transformer for 800–2000A applications, with 1A or 5A secondary output, accuracy classes 0.1, 0.2S, 0.2, 0.5S, 0.5 and 1, up to 30 VA power, and an 80X10 mm window size.

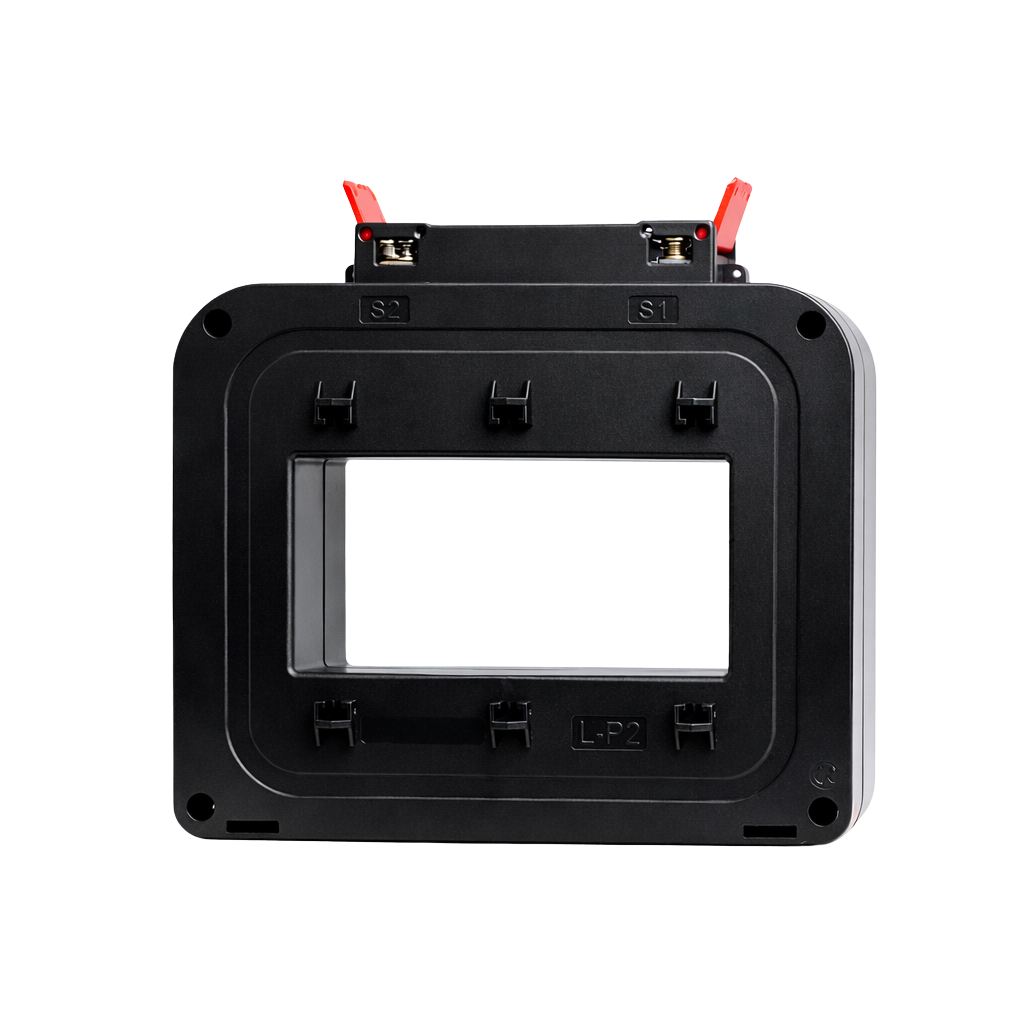

The TK120 Series Window Type CT is a compact transformer for 2000–6300A applications, with 1A or 5A secondary output, accuracy classes 0.1, 0.2S, 0.2, 0.5S, 0.5 and 1, up to 40 VA power, and a 70X120 mm window size.

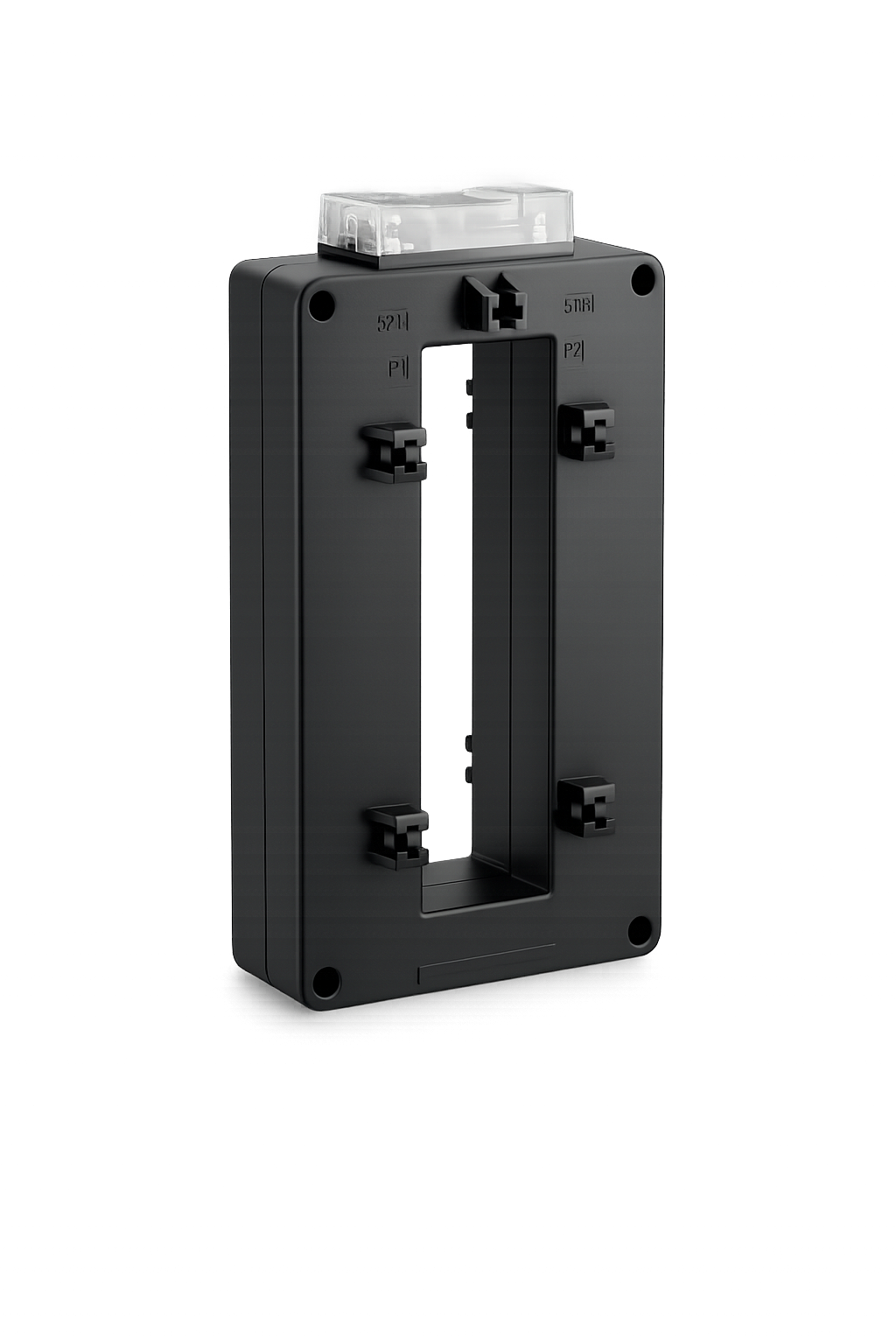

The DK125 Series Window Type CT is a compact transformer for 1000–4000A applications, with 1A or 5A secondary output, accuracy classes 0.1, 0.2S, 0.2, 0.5S, 0.5 and 1, up to 30 VA power, and a 125X39 mm window size.
The BK1C Series Terminal Type Current Transformer is a compact CT for 5–50A applications, with 1A or 5A secondary output, accuracy classes 0.5 and 1, up to 5 VA power, and a terminal type design.
The BK Series Busbar Type Current Transformer is a compact CT for 5–200A applications, with 1A or 5A secondary output, accuracy classes 0.5S, 0.5 and 1, up to 15 VA power, and a busbar type design.

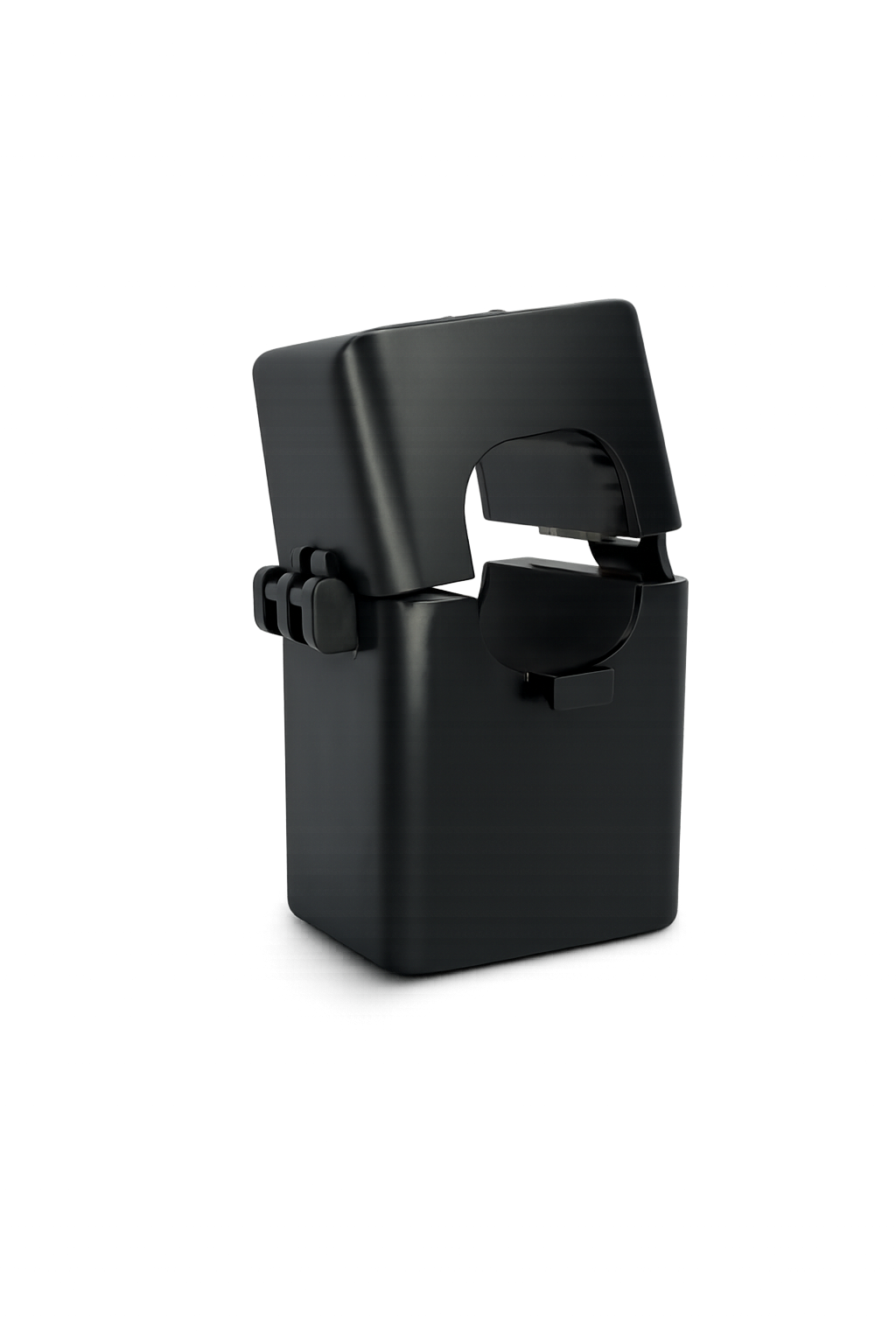

The MSK24 Split-Core Current Transformer is a compact CT for 100–300A applications, with 1A or 5A secondary output, accuracy classes 1 and 3, up to 2.5 VA power, and a 24X24 mm window size with split-core design for easy installation.

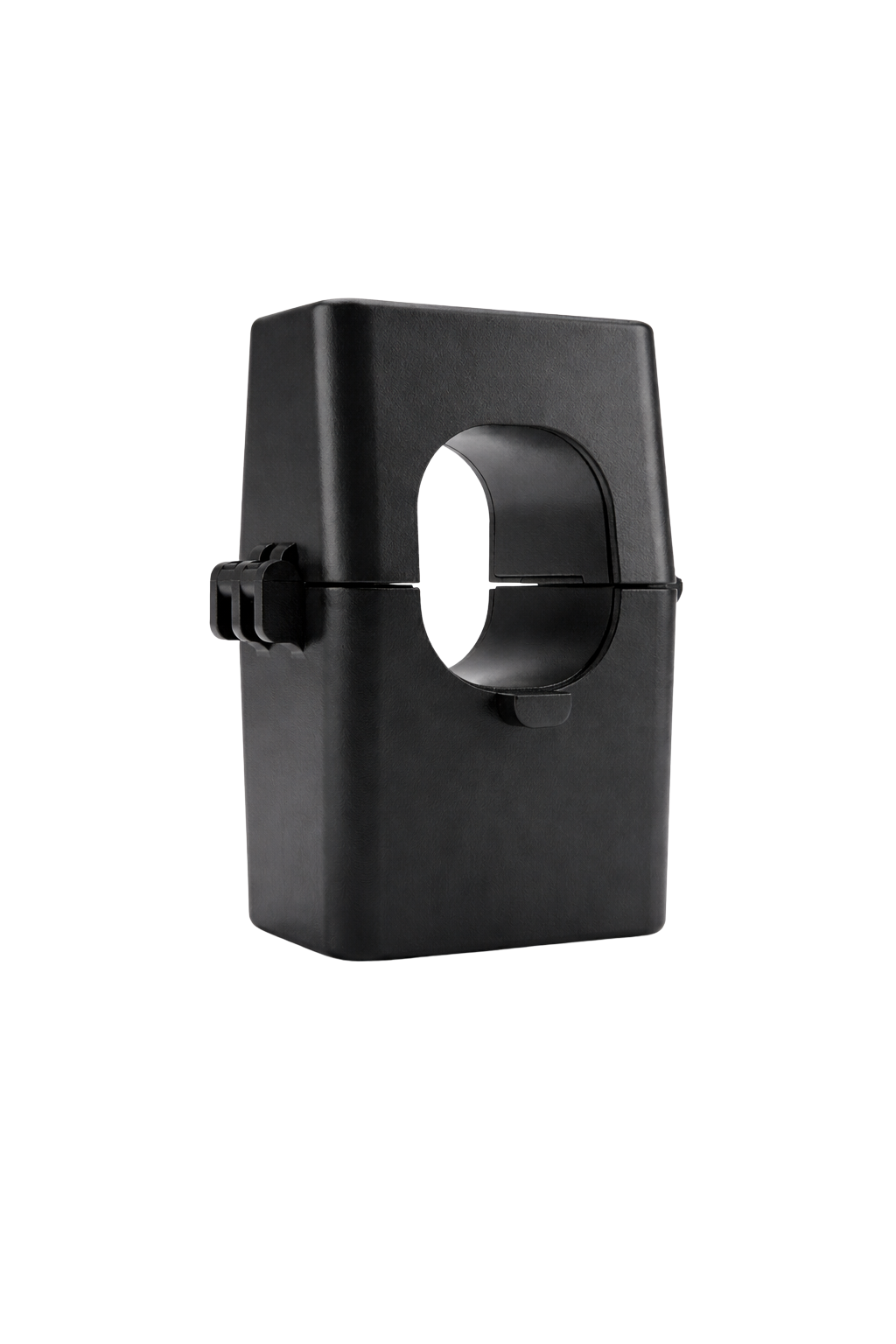

The MSK36 Split-Core Current Transformer is a compact CT for 100–400A applications, with 1A or 5A secondary output, accuracy classes 1 and 3, up to 2.5 VA power, and a 36X36 mm window size with split-core design for easy installation.

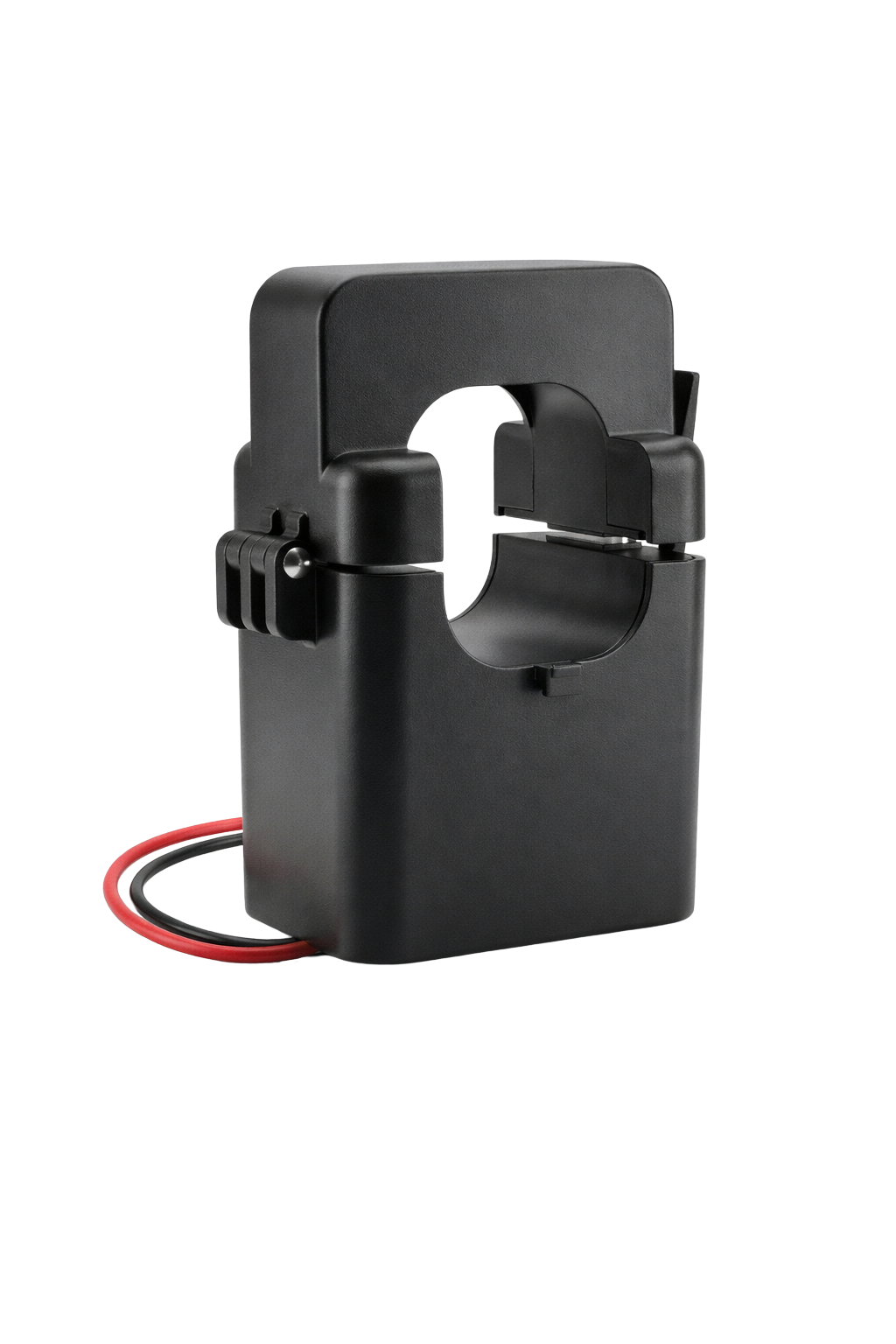

The MSK50 Split-Core Current Transformer is a compact CT for 100–600A applications, with 1A or 5A secondary output, accuracy classes 1 and 3, up to 5 VA power, and a 50X50 mm window size with split-core design for easy installation.

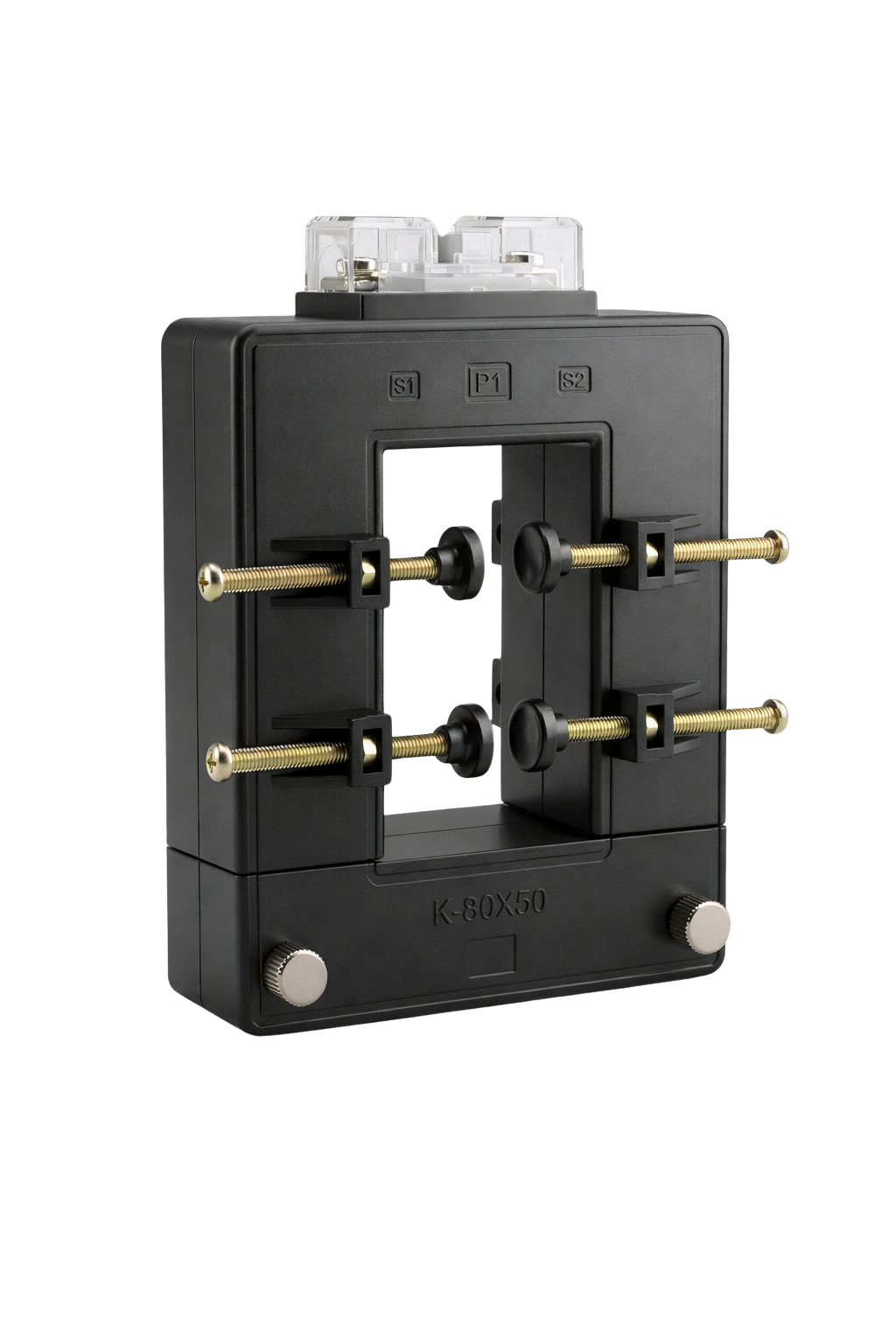

The SK58 Split-Core Current Transformer is a compact CT for 250–1600A applications, with 1A or 5A secondary output, accuracy classes 0.5, 1, and 3, up to 10 VA power, and an approximately 58X58 mm window size with split-core design for easy installation.

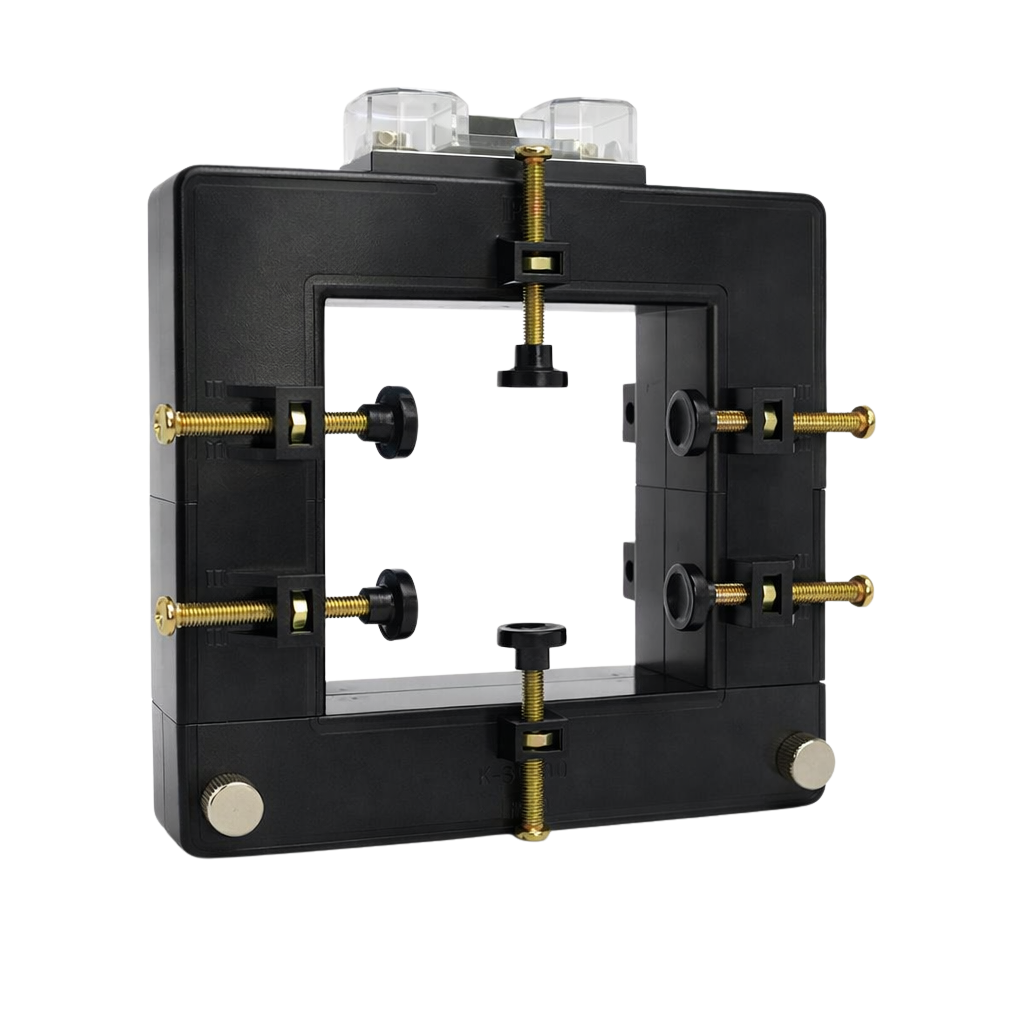

The SK88 Split-Core Current Transformer is a compact CT for 400–2000A applications, with 1A or 5A secondary output, accuracy classes 1 and 0.5, up to 10 VA power, and an approximately 88X88 mm window size with split-core design for easy installation.

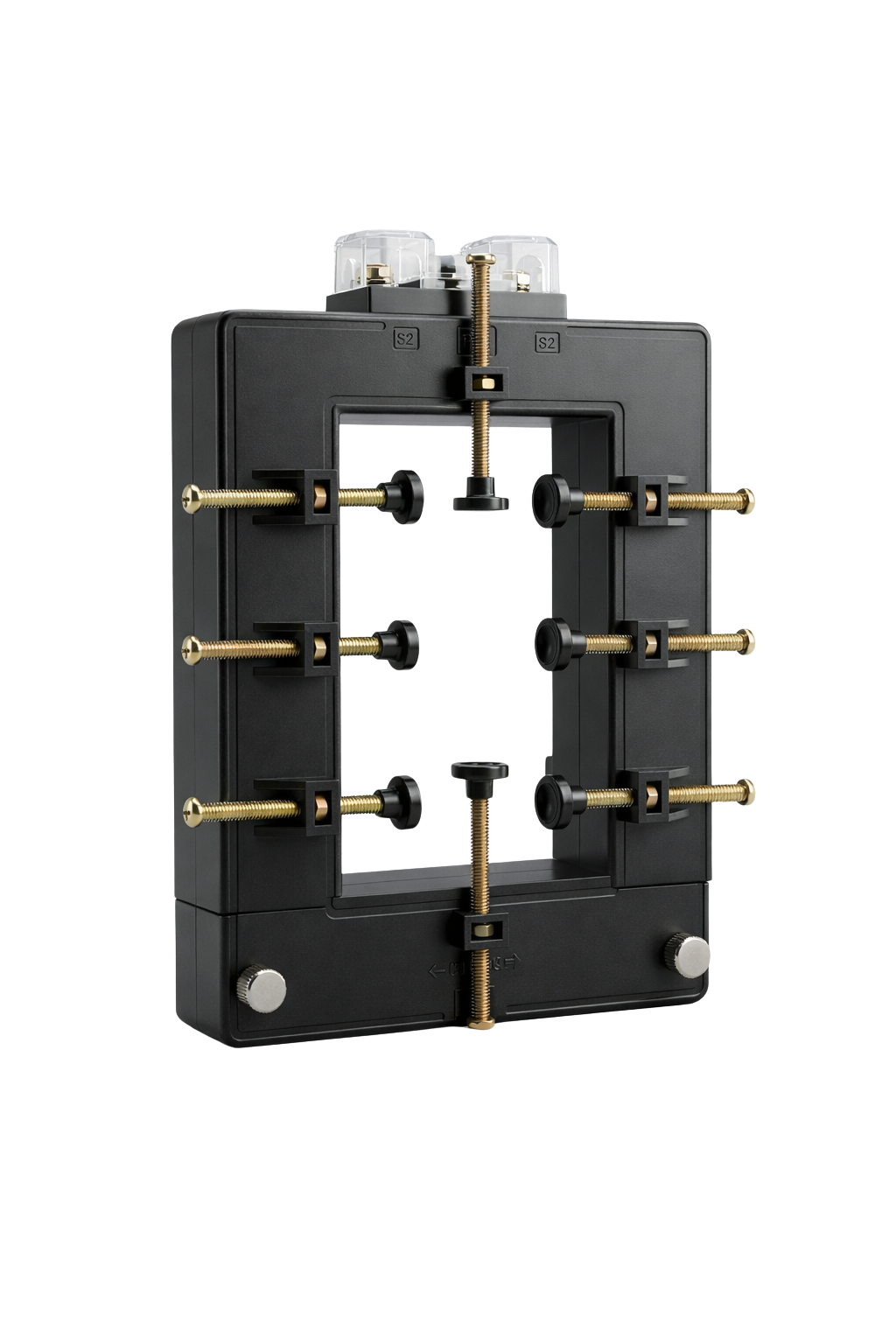

The SK812 Split-Core Current Transformer is a compact CT for 400–3000A applications, with 1A or 5A secondary output, accuracy classes 0.5, 1, and 3, up to 30 VA power, and an approximately 80X120 mm window size with split-core design for easy installation.

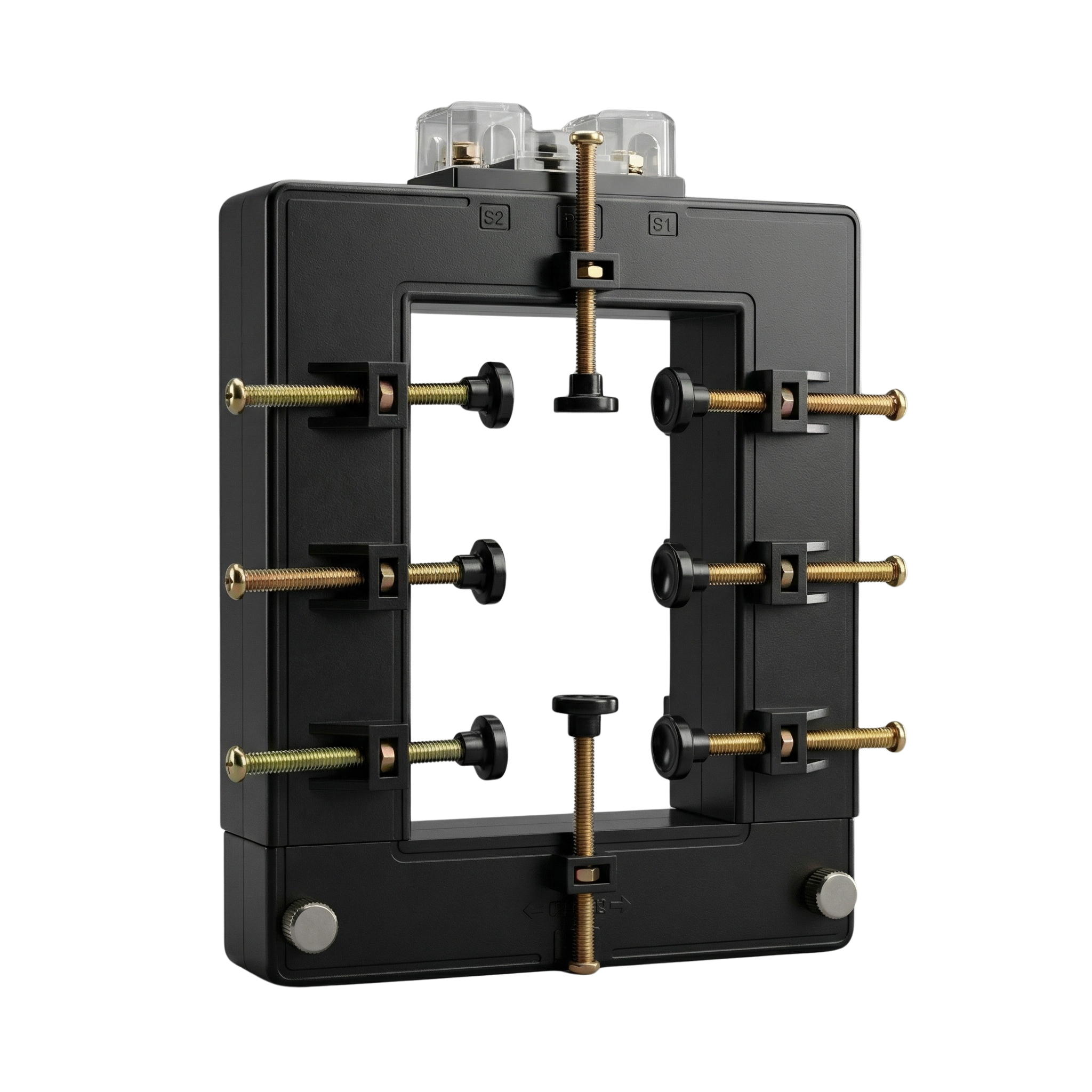

The SK816 Split-Core Current Transformer is a compact CT for 1000–6000A applications, with 1A or 5A secondary output, accuracy classes 0.5, 1, and 3, up to 30 VA power, and an approximately 80X160 mm window size with split-core design for easy installation.

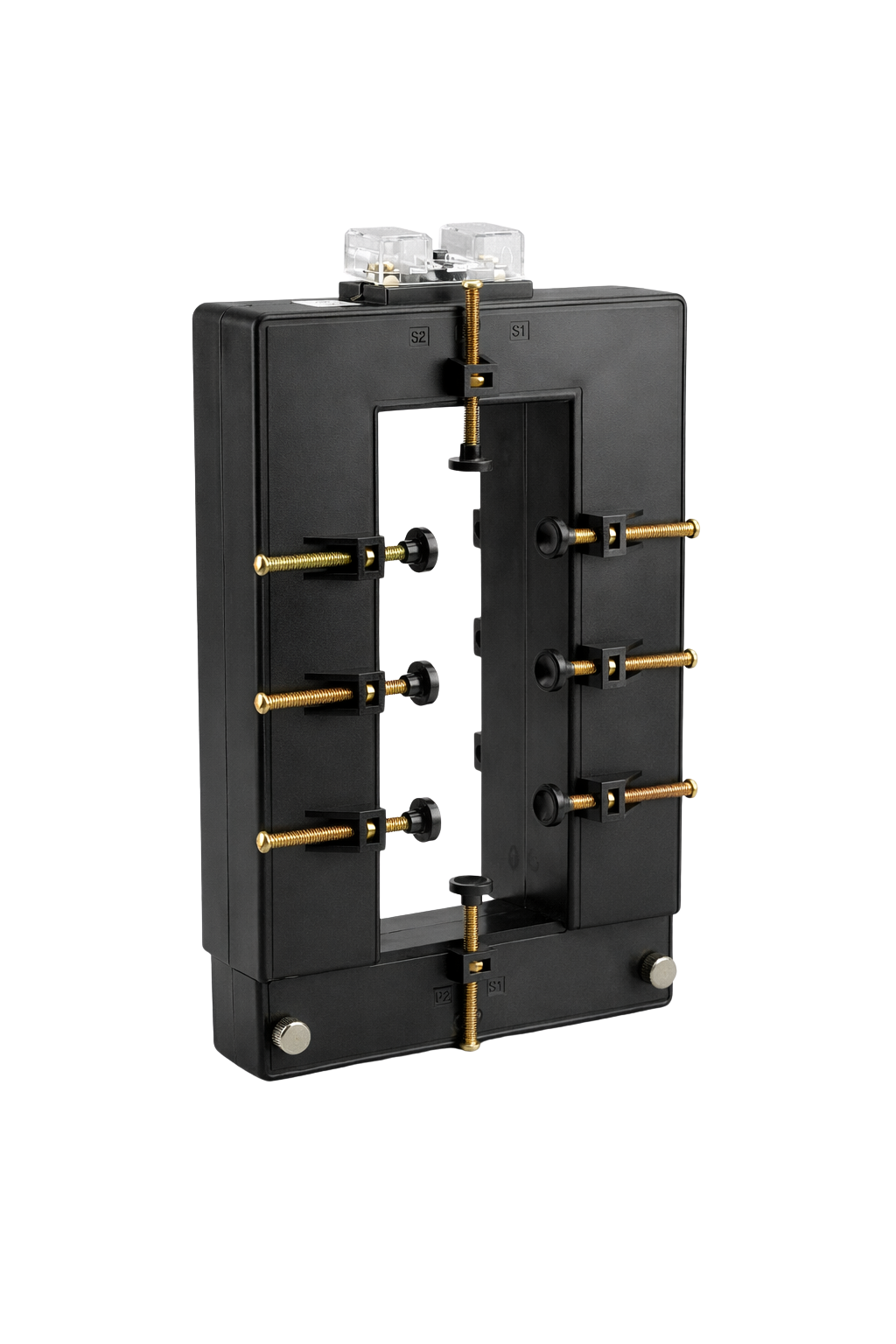

The SK820 Maximum Split-Core Current Transformer is a compact CT for 2000–6300A applications, with 1A or 5A secondary output, accuracy class 0.5, up to 30 VA power, and an approximately 80X200 mm window size with split-core design for easy installation.
The VST5 Summation Current Transformer is a compact CT for 5A applications, accuracy class 1, up to 5 VA power, and a summation CT design for combining multiple inputs.

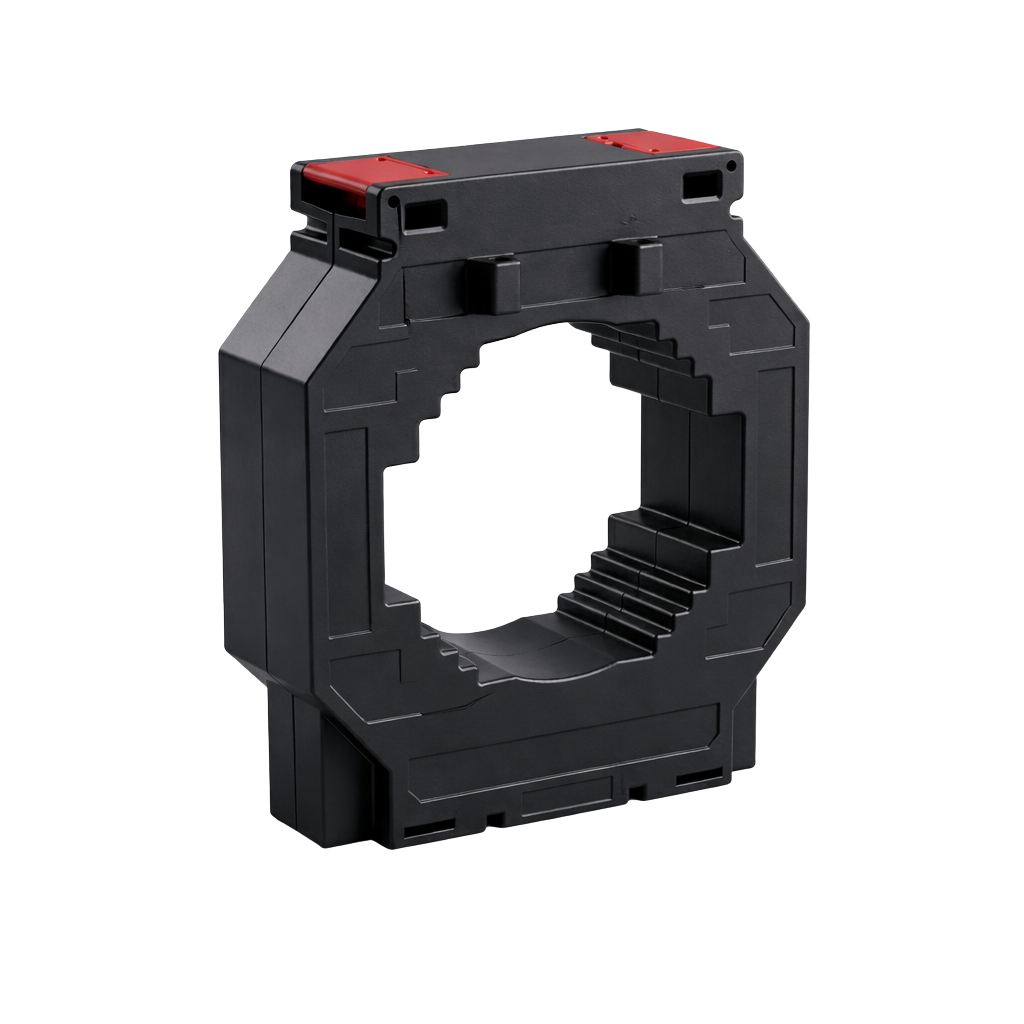

The TK100 Window-Type Current Transformer features a sealable terminal cover and is suitable for 1000–4000A AC primary currents. It offers 1A or 5A secondary output, accuracy classes 0.1, 0.2S, 0.2, 0.5S, 0.5, or 1.0, up to 30 VA power, and a 100X30 mm window size.

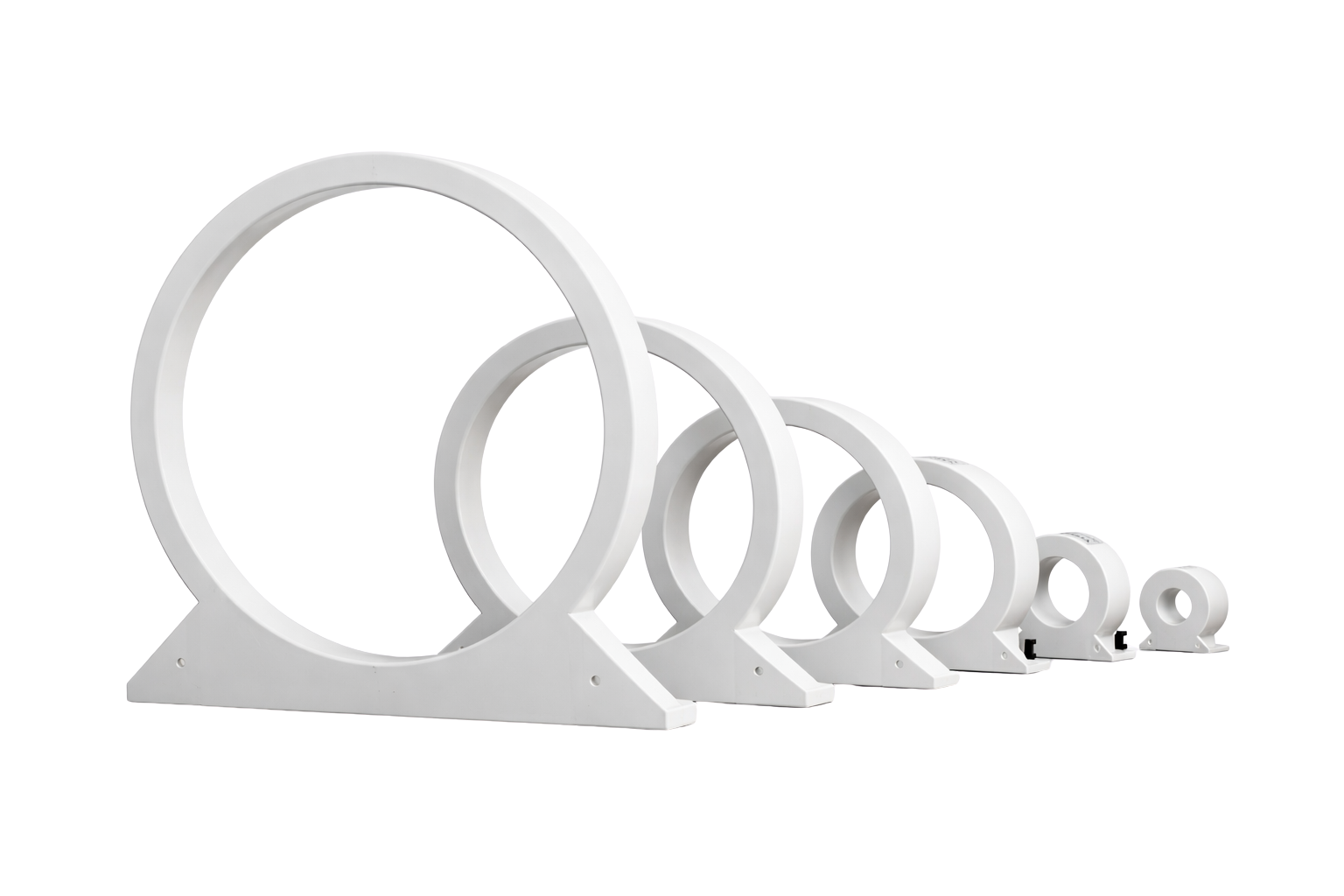

The VTOR Core Balance Current Transformer is designed for 1000A or 500A applications, with 1A secondary output, accuracy class 0.5, and a core balance design for earth leakage protection.
