Professional timing relays and controllers for industrial automation. Features on-delay, off-delay, star-delta, staircase, and multi-function timers with adjustable time ranges from 0.1 seconds to 100 hours.
DELAY TIMER

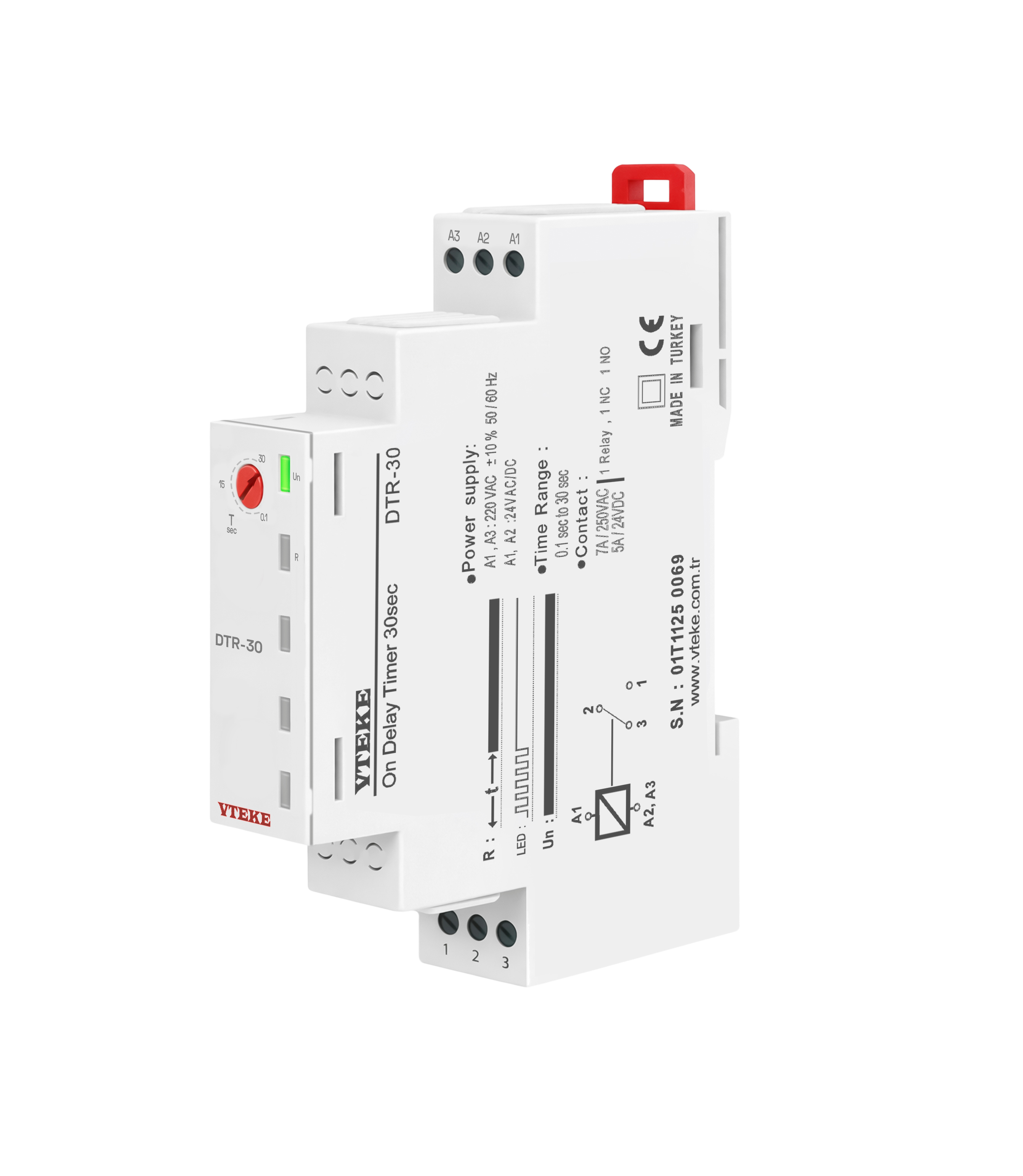

The DTR-30 On/Off Delay Timer operates at 230V AC or 24V AC/DC, with 50/60 Hz frequency, < 6 VA power, and provides adjustable on-delay or off-delay timing from 0.1 to 30 seconds.
DELAY TIMER
The DTR-60 On/Off Delay Timer operates at 230V AC or 24V AC/DC, with 50/60 Hz frequency, < 6 VA power, and provides adjustable on-delay or off-delay timing from 0.1 to 60 seconds.
DELAY TIMER
The DTR-03M On/Off Delay Timer operates at 230V AC or 24V AC/DC, with 50/60 Hz frequency, < 6 VA power, and provides adjustable on-delay or off-delay timing from 0.1 seconds to 3 minutes.
STAR-DELTA
The DTR-SD Star-Delta Timer operates at 180–230V AC, 50/60 Hz, with < 6 VA power, and provides star-delta timing for motor starting, with star delay from 0.1 to 30 seconds and waiting time from 1 ms to 500 ms.
STAIRCASE

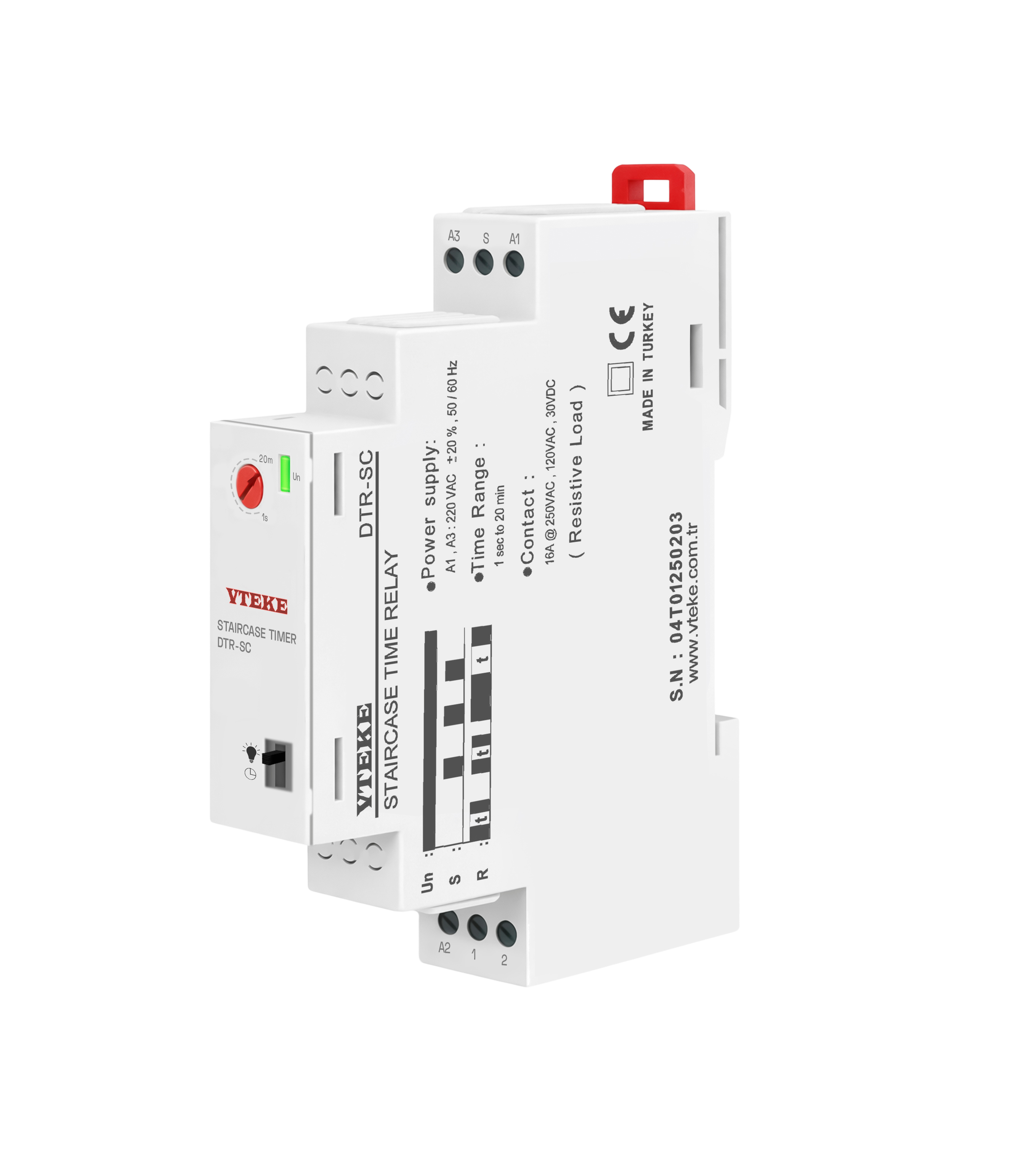

The DTR-SC Staircase Timer operates at 180–230V AC, 50/60 Hz, with < 6 VA power, and provides adjustable timing from 1 second to 20 minutes for lighting control applications.
TIMER
The FTR-07 Right-Left Alternating Timer operates at 12–230V AC/DC, 50/60 Hz, with < 6 VA power, and provides adjustable alternating timing from 0.1 seconds to 100 minutes.
DELAY TIMER
The FTR-08 On/Off Delay Timer operates at 230V AC or 24V AC/DC, 50/60 Hz, with < 6 VA power, and provides adjustable on-delay or off-delay timing from 0.1 seconds to 100 hours.
DELAY TIMER
The FTR-08M Universal On/Off Delay Timer operates at 12–230V AC/DC, 50/60 Hz, with < 6 VA power, and provides adjustable on-delay or off-delay timing from 0.1 seconds to 100 hours.
ADJUSTABLE
The FTR-08MS Adjustable Delay/Flasher Timer operates at 12–230V AC/DC, 50/60 Hz, with < 6 VA power, and provides adjustable delay or flashing timing from 0.1 seconds to 100 hours.
FLASHER

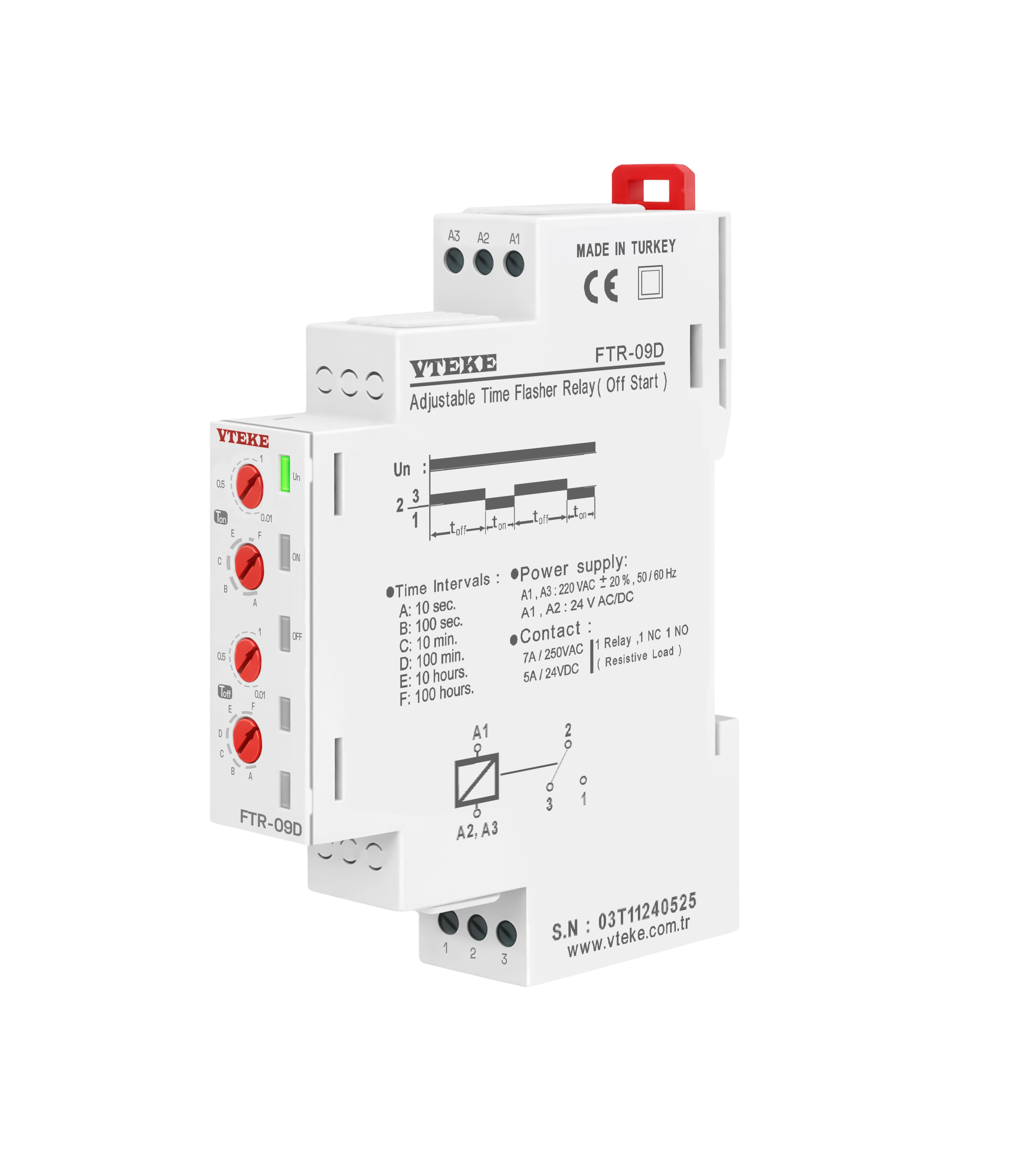

The FTR-09 Flasher Timer operates at 12–230V AC/DC, 50/60 Hz, with < 6 VA power, and provides adjustable flashing timing from 0.1 seconds to 100 minutes.
10 FUNCTIONS

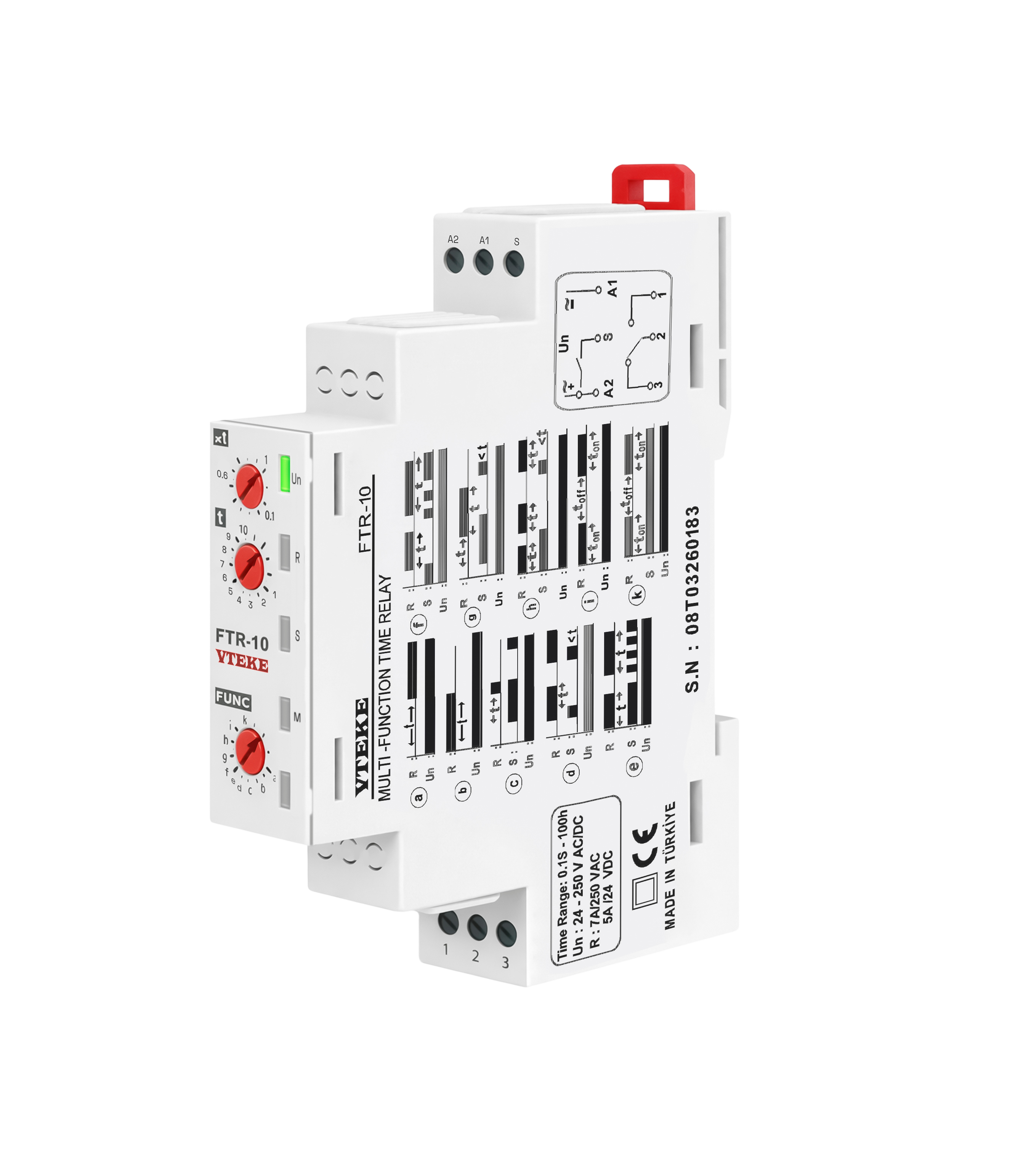

The FTR-10 10-Function Multi-Mode Timer operates at 12–230V AC/DC, 50/60 Hz, with < 6 VA power, and offers 10 selectable timing functions with adjustable range from 0.1 seconds to 30 hours.
